Further features of the surveillance canopy can include:
- FLIR Thermal sensor
- Laser Range Finder
- Compass and GPS
- Auto Target Tracking
- Color Day Sensor
- Radar System
- Acoustic sensor
- Tactical UAV
- Medium Range UAV
- Radio and Video Communication Link to HQ
- Satellite Communication Link to HQ
- Operation Window 48 hours
- Personnel Space for two people
- Drinking water: 50 liters
- Tenting: Four 3x3 Dome tents
- Auxillary Power through 5 KVA Diesel generator
- Max Sensor extended height 35 metres
- Max Mast Payload 60kg

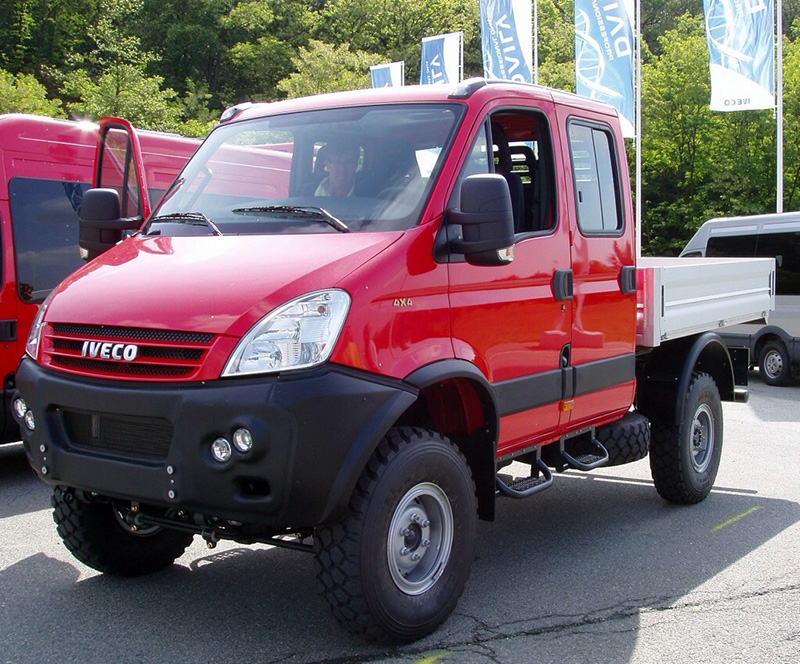

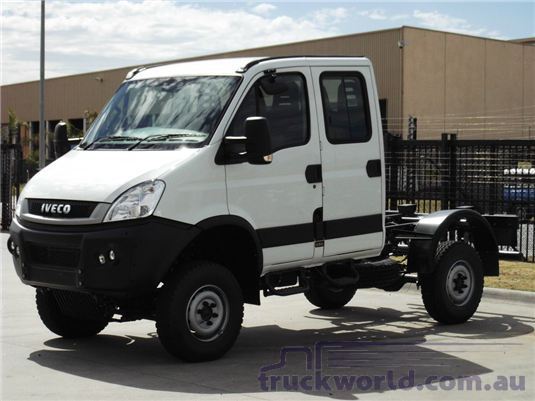

Building Blocks | Scorpion Mercedes Sprinter 4x4 | Scorpion Double Cab SUV 4X4 | Scorpion IVECO Double Cab 4X4 | Scorpion Armoured Carrier 4X4 |

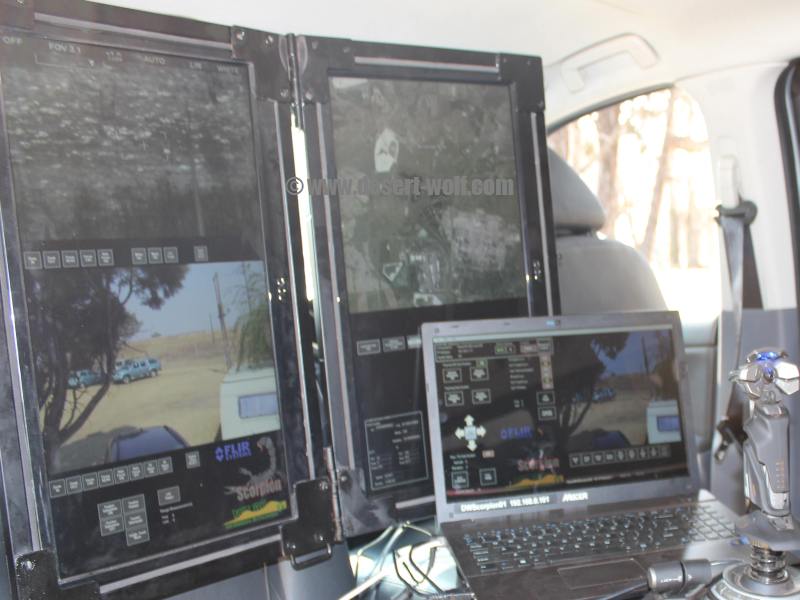

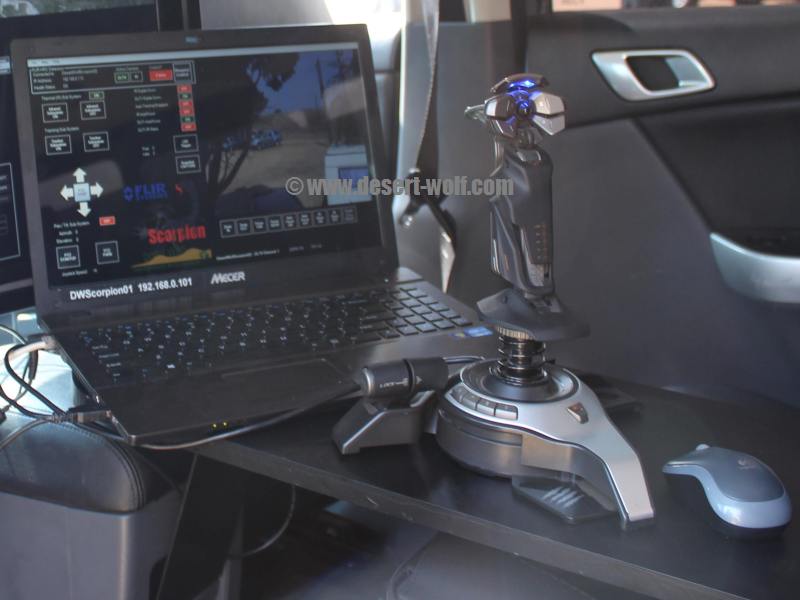

Command and Control operator console | Four large 22” LED screens with worktop for two seated operators | Two 22” LED screens with single worktop and two seated operators | Six large 22” LED screens with worktop for five seated operators | Four large 22” LED screens with worktop for two seated operators |
FLIR Thermal sensor | Yes | Yes | Yes | Yes |
Laser Range Finder | Yes | Yes | Yes | Yes |
Compass and GPS | Yes | Yes | Yes | Yes |
Auto Target Tracking | Yes | Yes | Yes | Yes |
Color Day Sensor | Yes | Yes | Yes | Yes |
Radar System | Yes | Yes | Yes | Yes |
Acoustic sensor | Yes | Yes | Yes | Yes |
Tactical UAV | Yes | Yes | Yes | Yes |
Medium Range UAV | NO | NO | Yes | Yes |
Radio and Video Communication Link to HQ | Yes | Yes | Yes | Yes |
Satellite Communication Link to HQ | Yes | Yes | Yes | Yes |
Operation Window | 48 Hrs | 48 Hrs | 5 Days | 5 Days |
Personnel Space | 2 | 4 | 6 | 8 |
Drinking water | 50 L | 100 L | 300 L | 300 L |
Tenting | Two 3x3 Dome tents | Two 3x3 Dome tents | Four 3x3 Dome tents | Four 3x3 Dome tents |
Auxillary Power | Petrol generator 2 KVA | Petrol generator 2 KVA | Diesel generator 5 KVA | Diesel generator 5KVA |
Max Sensor extended height | 5 metres | 5 metres | 35 metres | 35 metres |
Max Mast Payload | 45 Kg | 45 Kg | 60 Kg | 60 Kg |
