Violin Trailer System

The Violin is the ideal system for  medium and large surveillance operations. It has a large volume available for system components and easy access through its four side-loading doors and one rear door, which make this system both easy to operate and to maintain. The Violin can also accommodate a satellite dish system of up to 1800 mm which can be mounted on top of the main component bin. It also comes with inner and outer tubing stiffeners which are ideal protection against strong wind forces which are sometimes generated when satellite dishes are deployed.

The Violin accommodates all electronic equipment in vibration-dampened 19" rack mount-type systems and provides cooling air from either an air conditioner or forced air flow from DC fans, depending on the requirement. The Violin also has the front nose cone storage bin which is ideal for auxiliary equipment such as cables and tools.

The Violin comes equipped with a 2 KW petrol generator with a 400 Amp Hour battery back-up system. With a 1200 Watt full sine wave inverter, the user is assured of reliable and clean 220 V AC power when needed.

The Violin comes standard with an extra large single-load electronics bin with nose cone storage bin and the four side loading doors and one rear door, 80 litre diesel tank with four stabiliser adjustable feet, spiked sand plates and a rear swing-out spare wheel carrier.

Additional Info

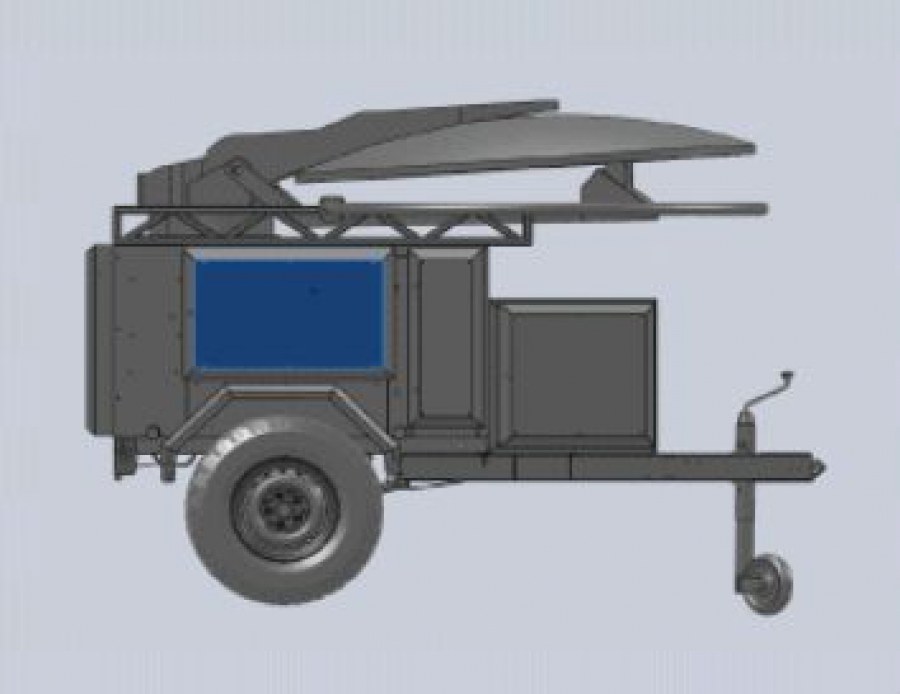

  • CAD Image: CAD Image
