Black Widow Trailer System

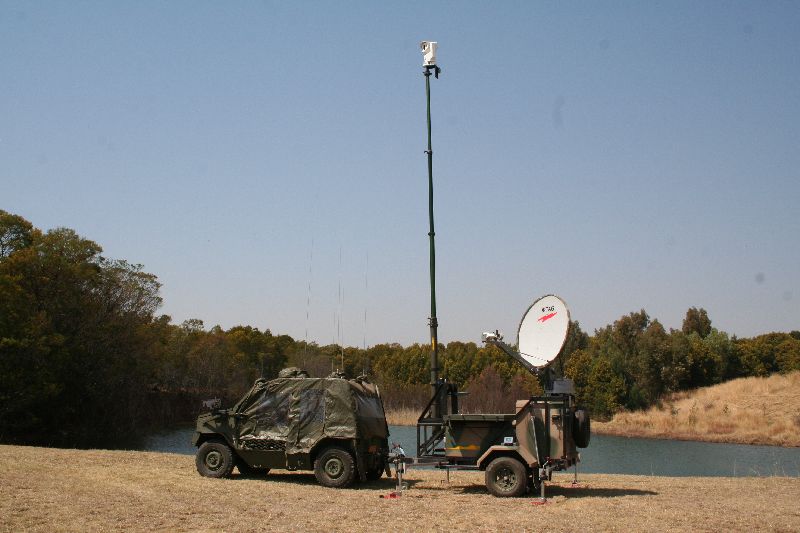

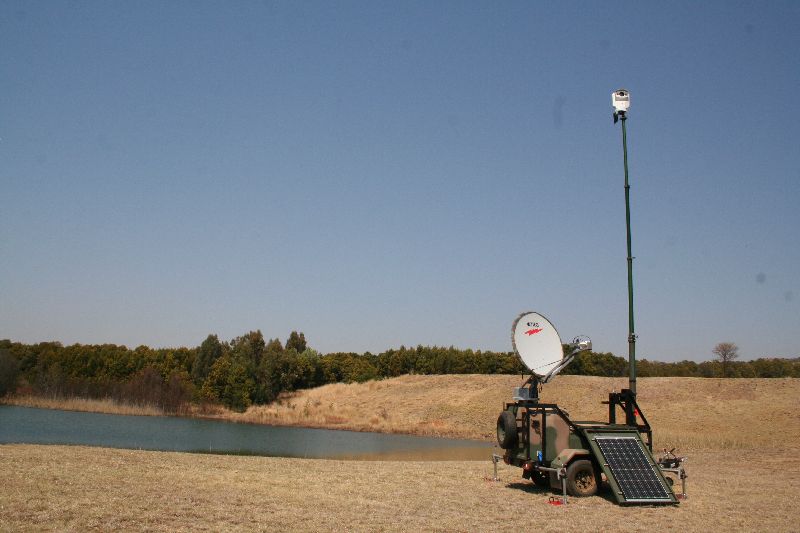

The Black Widow is the ideal system for medium surveillance. It has a large volume available for system components and easy access through its large top and rear doors which make this system both easy to operate and to maintain. The Black Widow can also accommodate a satellite dish system of up to 1800 mm which can be mounted on top of the main bin. It also comes with inner and outer tubing stiffeners which are ideal protection against strong wind forces which are sometimes generated when satellite dishes are deployed.

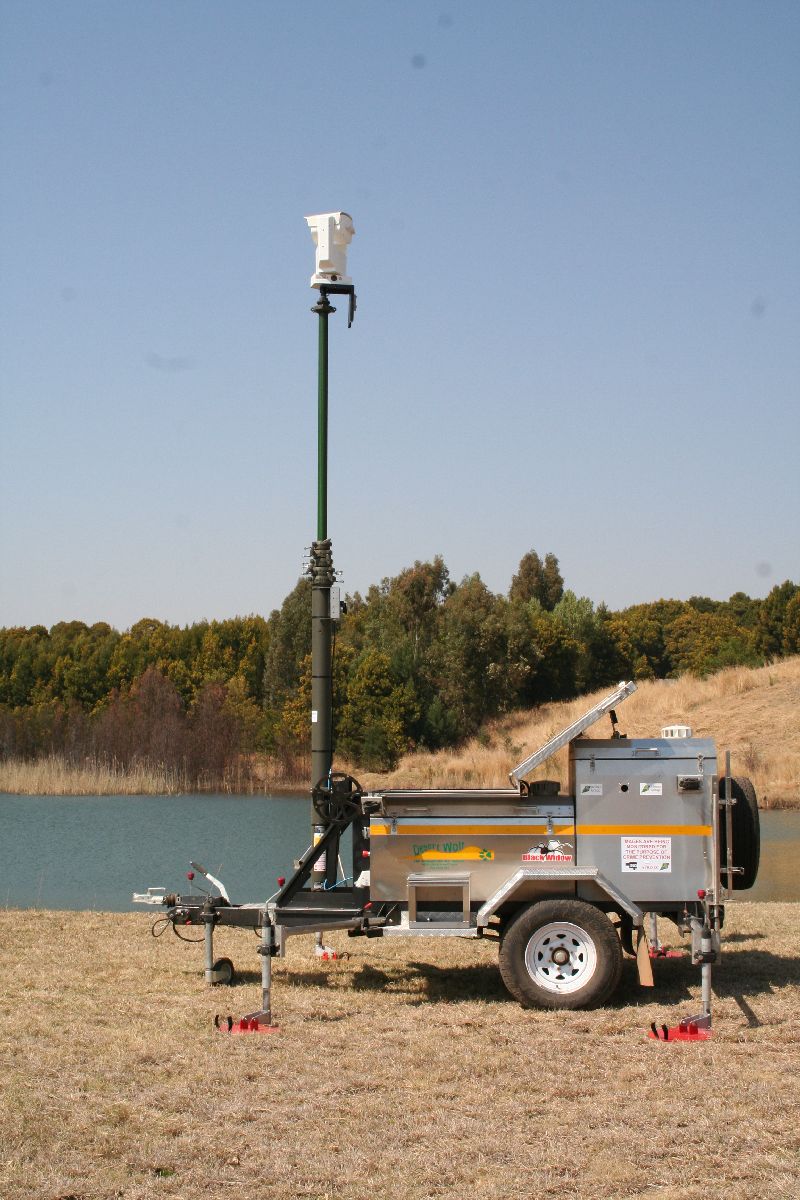

The Black Widow accommodates all electronic equipment in vibration dampened 19" rack mount-type systems and provides cooling air with either an air conditioner or forced air flow from DC fans, depending on the requirement. The Red Roman also has the front mast tilting mechanism which makes the attachment of sensors on the mast an easy task.

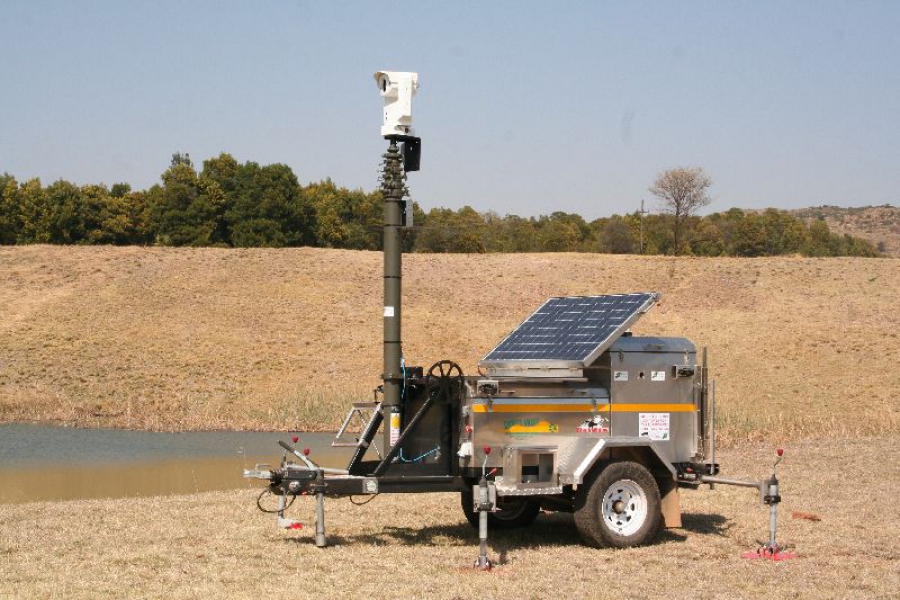

The Black Widow comes equipped with a solar-powered system and a 2 KW petrol generator with a 400 amp per hour battery back-up system. With the 1200 watt full sine wave inverter, the user is assured of reliable and clean 220 V AC power when needed. The petrol generator can be controlled from a remote control centre and can be started as and when needed to top up the battery bank.

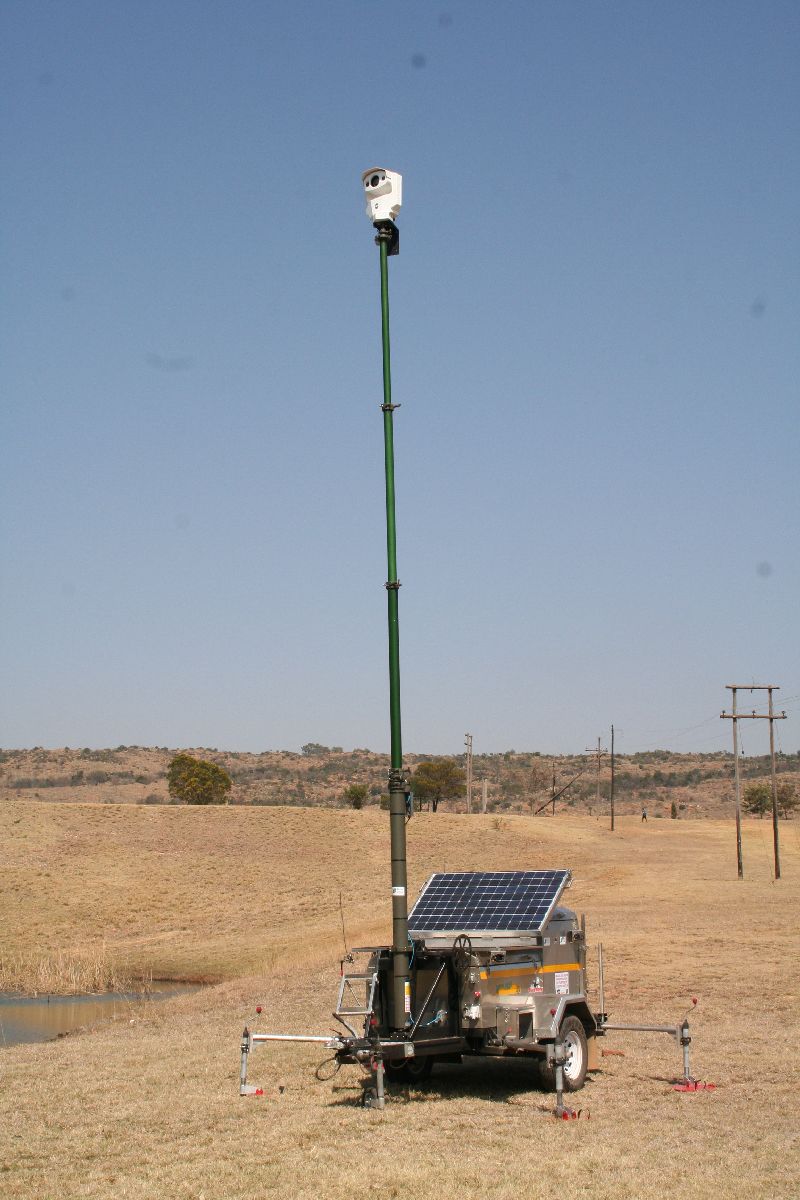

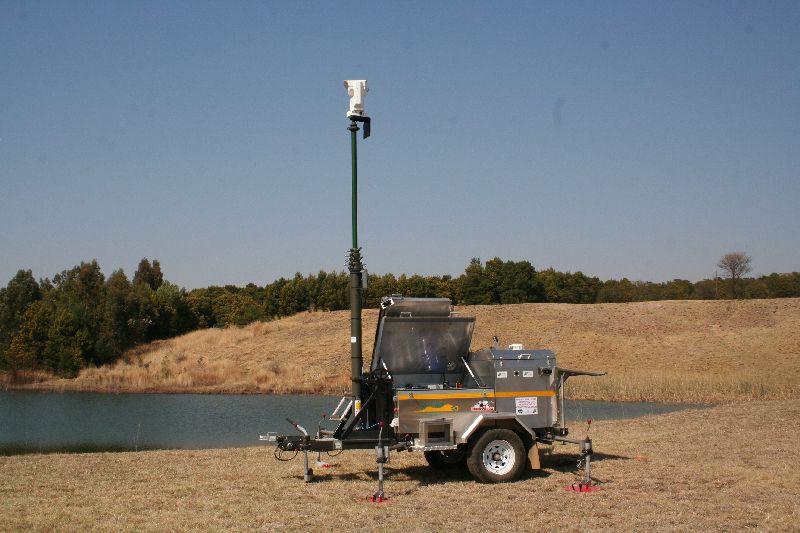

The Black Widow is available with three different mast options: mast up to 9m; mast between 10m and 18m or mast between 19m and 35m.

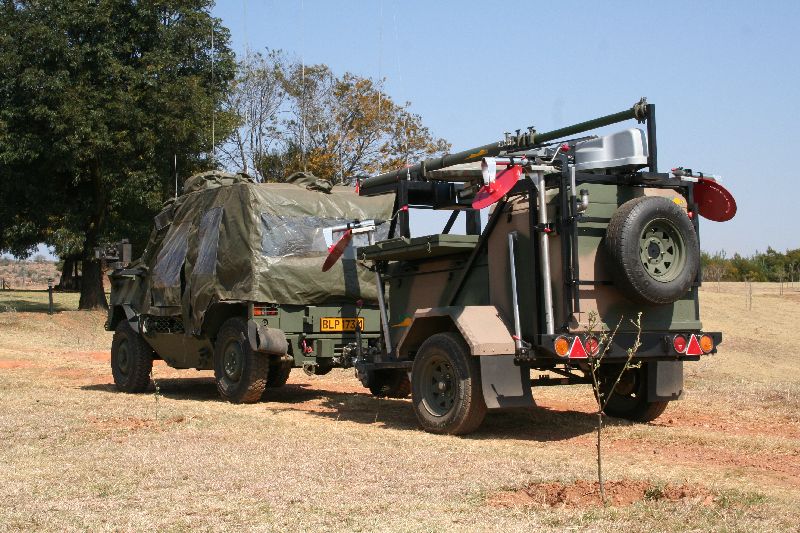

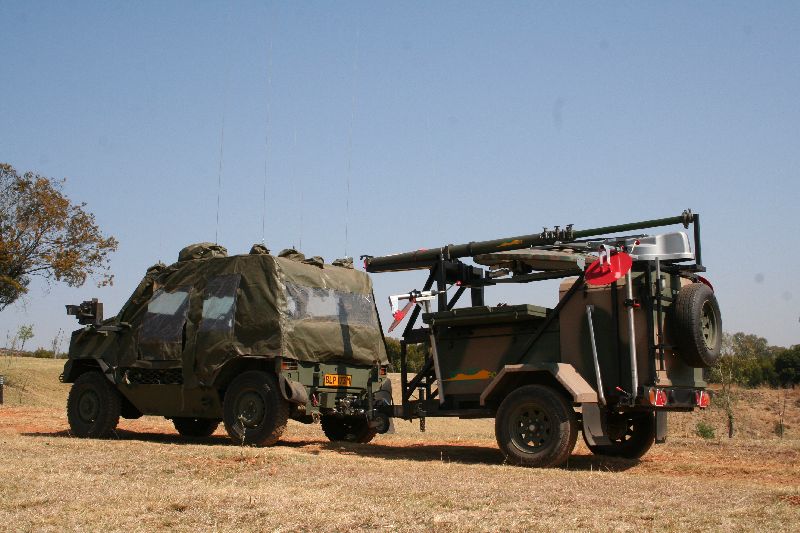

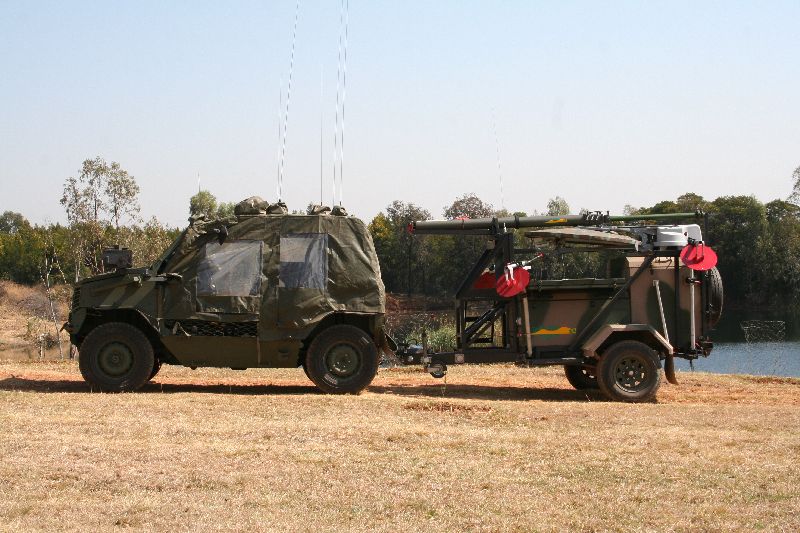

The Black Widow comes standard with an electronics bin with separate generator bin, 80 litre diesel tank with four stabiliser adjustable feet, spiked sand plates and a rear swing-out spare wheel carrier.

The Black Widow system is available in the following configurations:

  • Black Widow with mast up to 9m
  • Black Widow with mast 10 - 18m
  • Black Widows with mast 19 - 35m
